3 CH Dwdm Oadm Dual Fiber 100ghz Lc/upc With Rackmount Add And Drop Multiplexer

Name: 3 CH Dwdm Oadm Dual Fiber 100ghz Lcupc With Rackmount Add And Drop Multiplexer
Brand: 6COM
Price: 1 USD

Wholesale 3 CH Dwdm Oadm Dual Fiber 100ghz Lc/upc With Rackmount Add And Drop Multiplexer from china suppliers

Brand Name : 6COM

Model Number : 3 CH-OADM

Certification : CE RoHS,ISO9001

Place of Origin : China

MOQ : 1 pieces

Price : USD >= 1 pieces $169

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Piece/Pieces per Day

Delivery Time : 7 Days

Packaging Details : inner box,Carton

Dimension : 212mm(L) x 44mm(H) x 267.3mm(D)

Warranty Time : 3 years

Operating Temperature : 10°C~ +70°C

Wavelength : 3 Channels C21-C24

Storage Temperature : -40°C~85°C

Return Loss : > 45 dB

Contact Now

Product description

3 CH Dwdm Oadm Dual Fiber 100ghz Lc/upc with rackmount add and drop multiplexer

GEZHI CWDM Optical Add/Drop multiplexer (OADM) is a passive optical device used in WDM networks for adding and dropping one/multiple CWDM channels into one or two fibers, while letting the rest of the wavelengths bypass to the needed destination.

3 CH Dwdm Oadm Dual Fiber 100ghz Lc/upc With Rackmount Add And Drop Multiplexer

Features:

Low Insertion Loss& High Channel Isolation
High Stability and Reliability
Product Type: 100Ghz
Package Type: 19” 1U Rackmount

PRODUCT SPECIFICATIONS

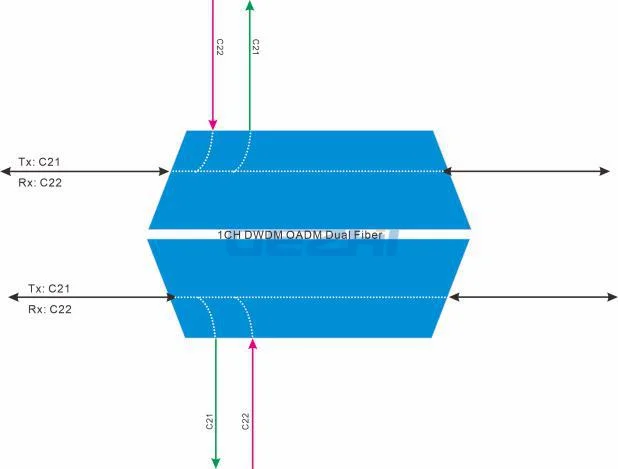

1CH Dual fiber One direction

3 CH Dwdm Oadm Dual Fiber 100ghz Lc/upc With Rackmount Add And Drop Multiplexer

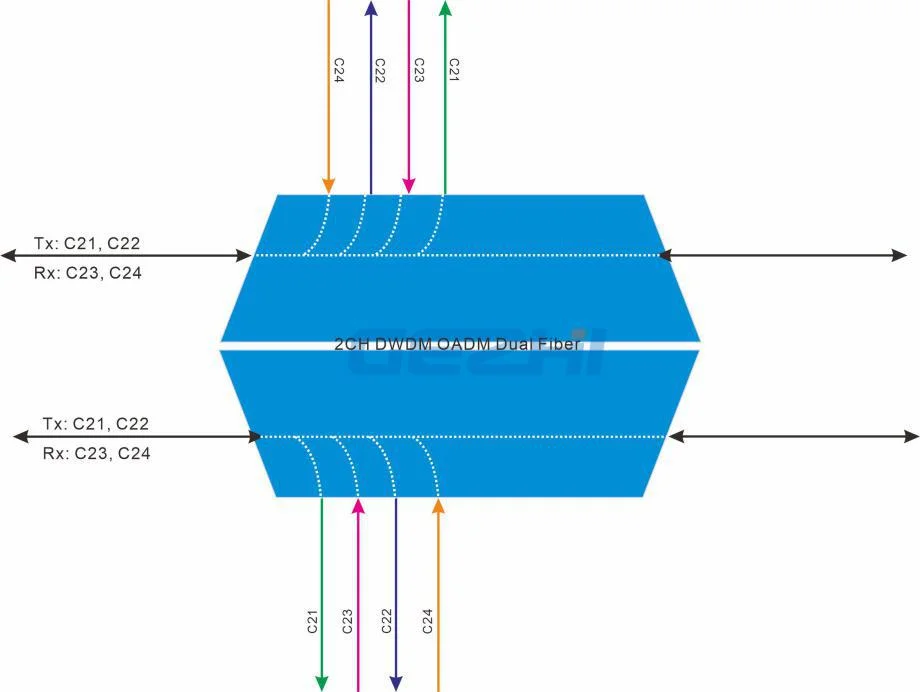

2CH dual fiber One direction

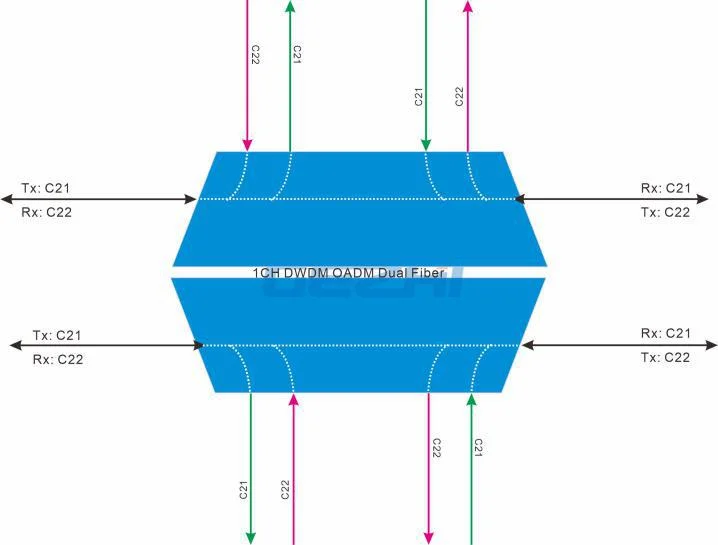

1CH dual fiber Both direction

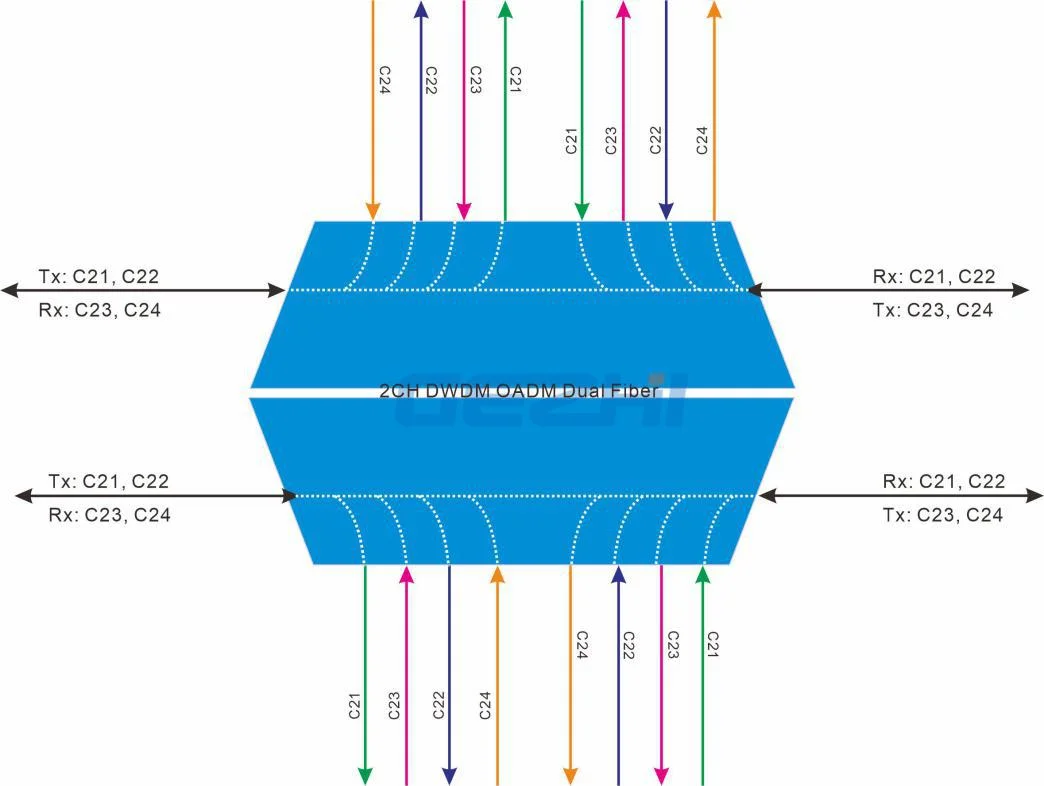

2CH dual fiber Both direction

FAQ

Q1:Can I have a sample order? What is your MOQ?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.

Q2: What's the Lead time?

A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.

Q3: What are the payment terms?

A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.

Q4: What is your warranty time
A4: 3 years' warranty.

Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
